Alusic FC LINE

Linear Actuators,

Alusic FC Line

Alusic offers a wide selection of linear actuators designed to handle various load requirements. The range is divided into two main series, each using different drive systems and suited to different load levels.

The FC Light series features T5 or AT10 timing belts and is equipped with guides that provide medium to low load capacity.

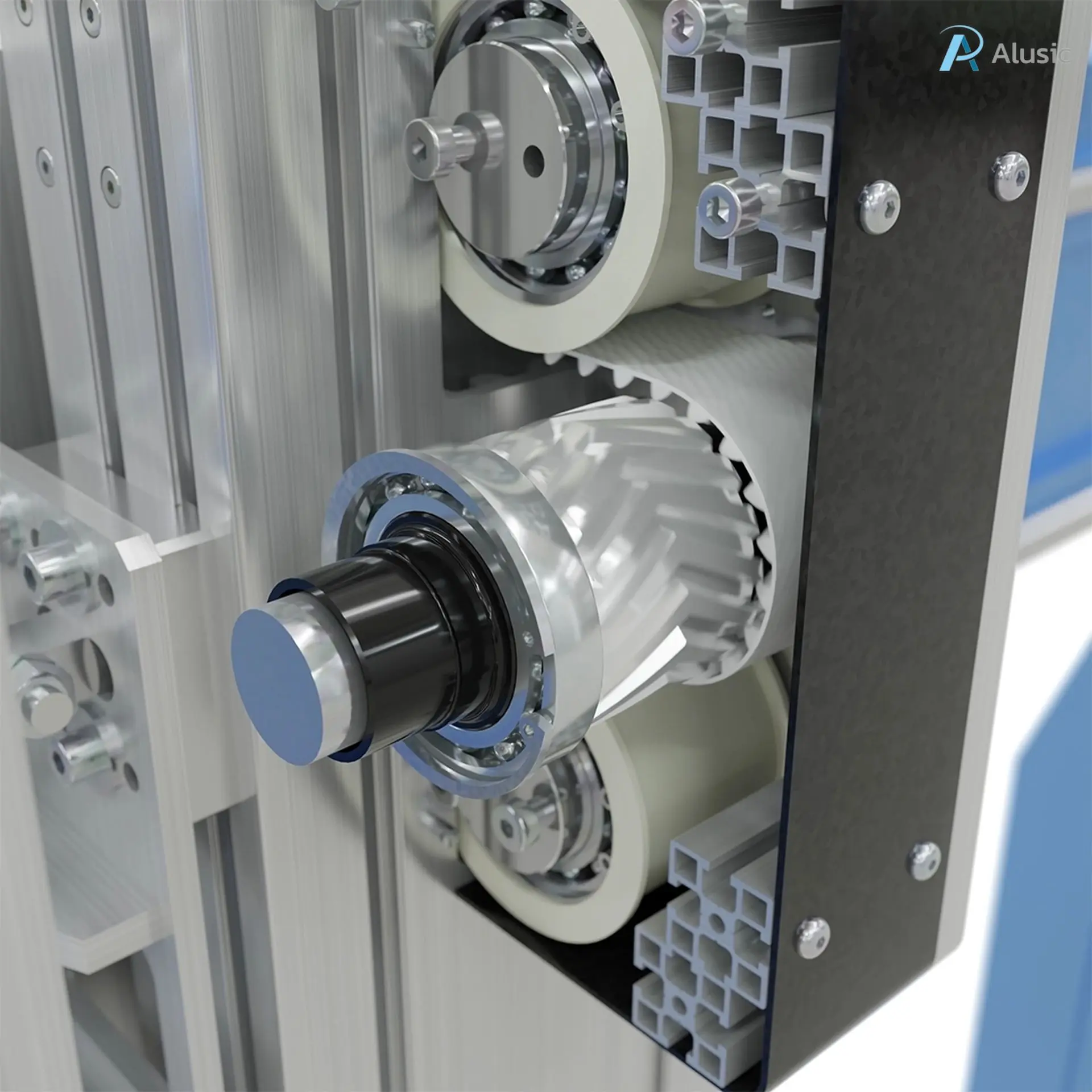

The FC Heavy series, by contrast, incorporates an advanced offset helical gear drive for superior performance, paired with guides capable of handling medium to high loads.

Alusic has further broadened its offerings by adding ball bearing guides and sliding carriage options to meet even more application needs.

Linear Axes

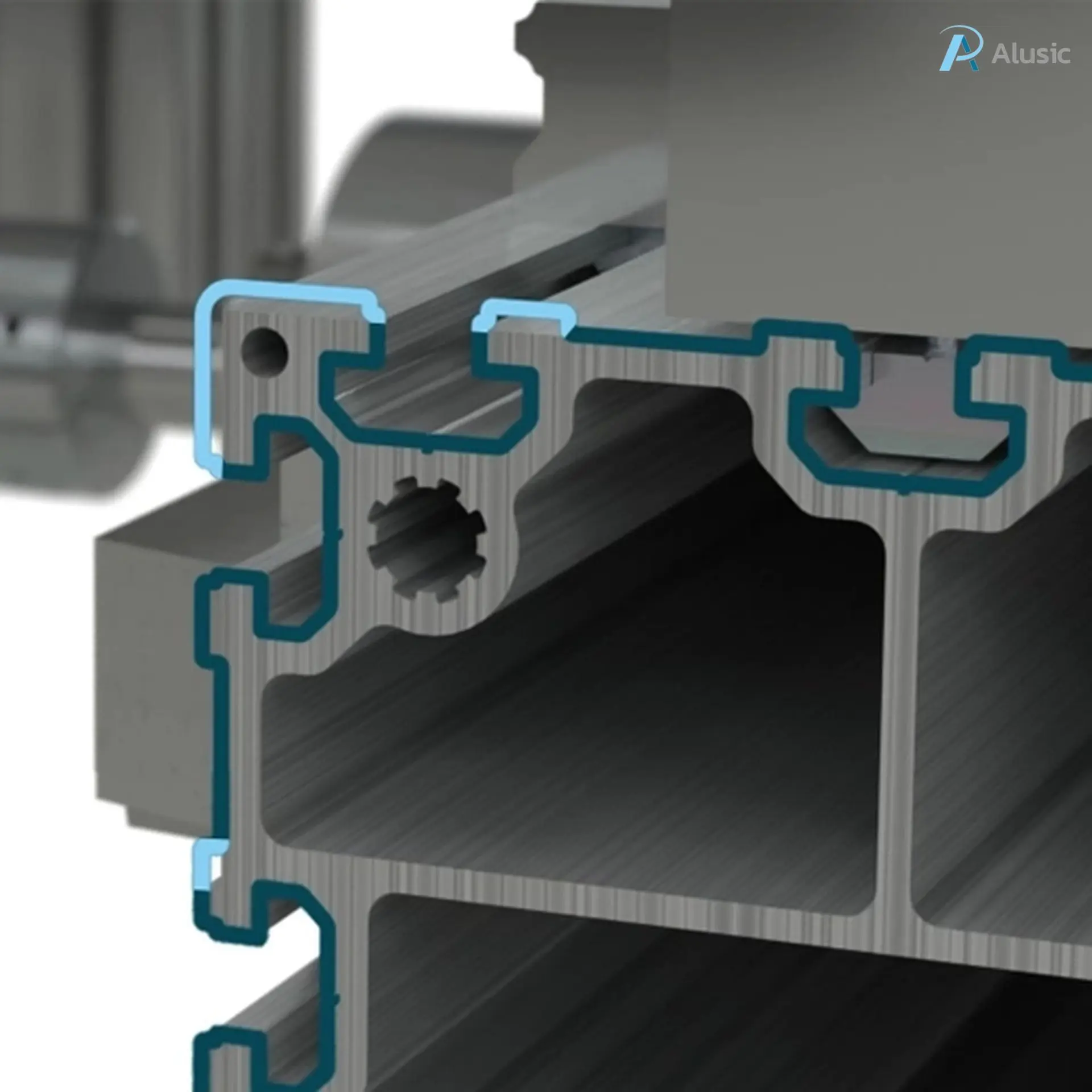

The Alusic FC Line revolutionizes linear actuators by seamlessly building them right into the structural framework itself.

Using only the same Alusic structural profiles that already form workbenches, machine frames, and other assemblies, it completely removes the need for separate housings or enclosures. This smart integration saves valuable space, cuts costs, and simplifies long-term maintenance.

What truly sets it apart is the unmatched design freedom: every actuator is tailor-made to match your exact requirements and application — not the other way around. Forget forcing your project to fit off-the-shelf standards.

It's a fresh, forward-thinking approach that breaks free from conventional limits and opens the door to virtually unlimited possibilities.

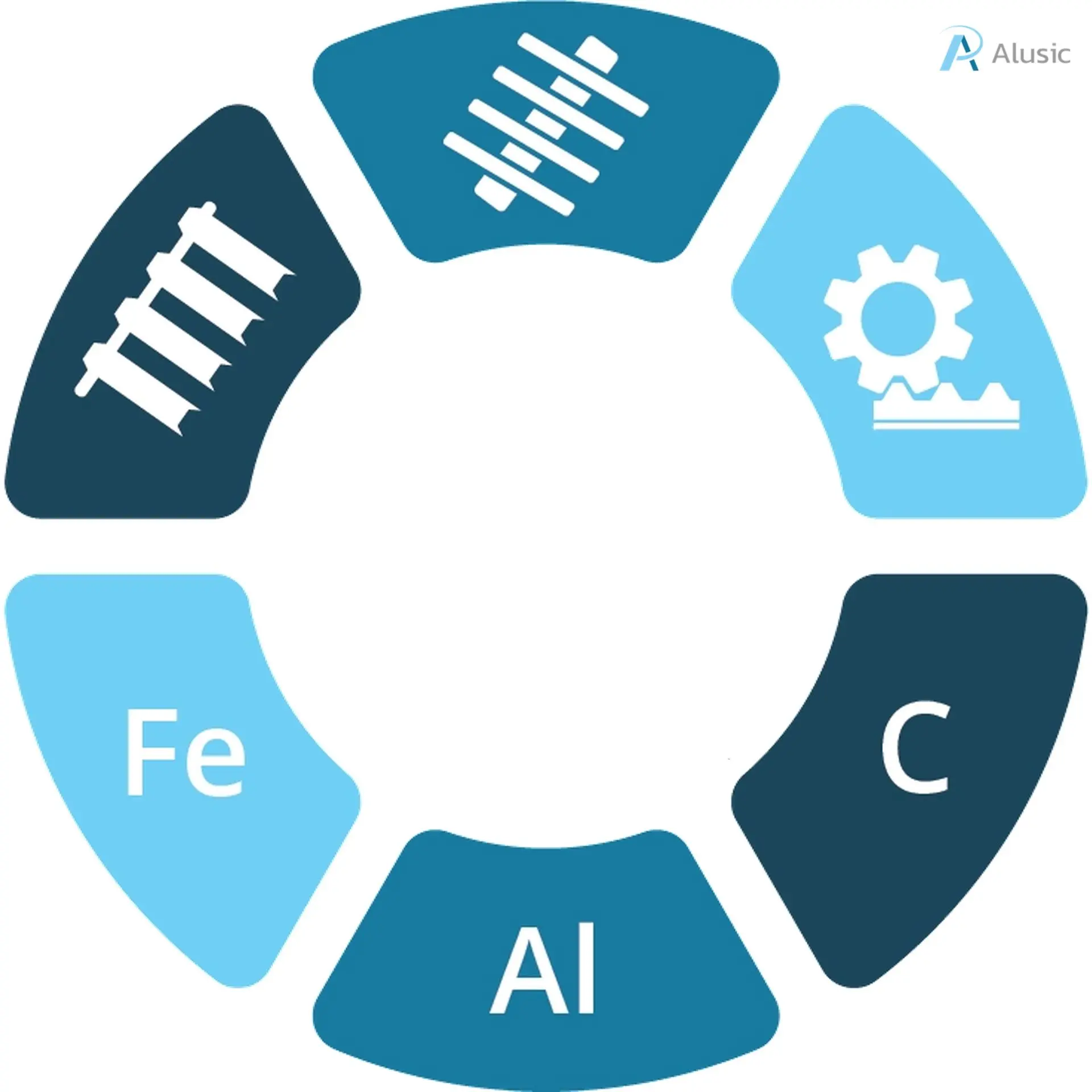

Types

Belt

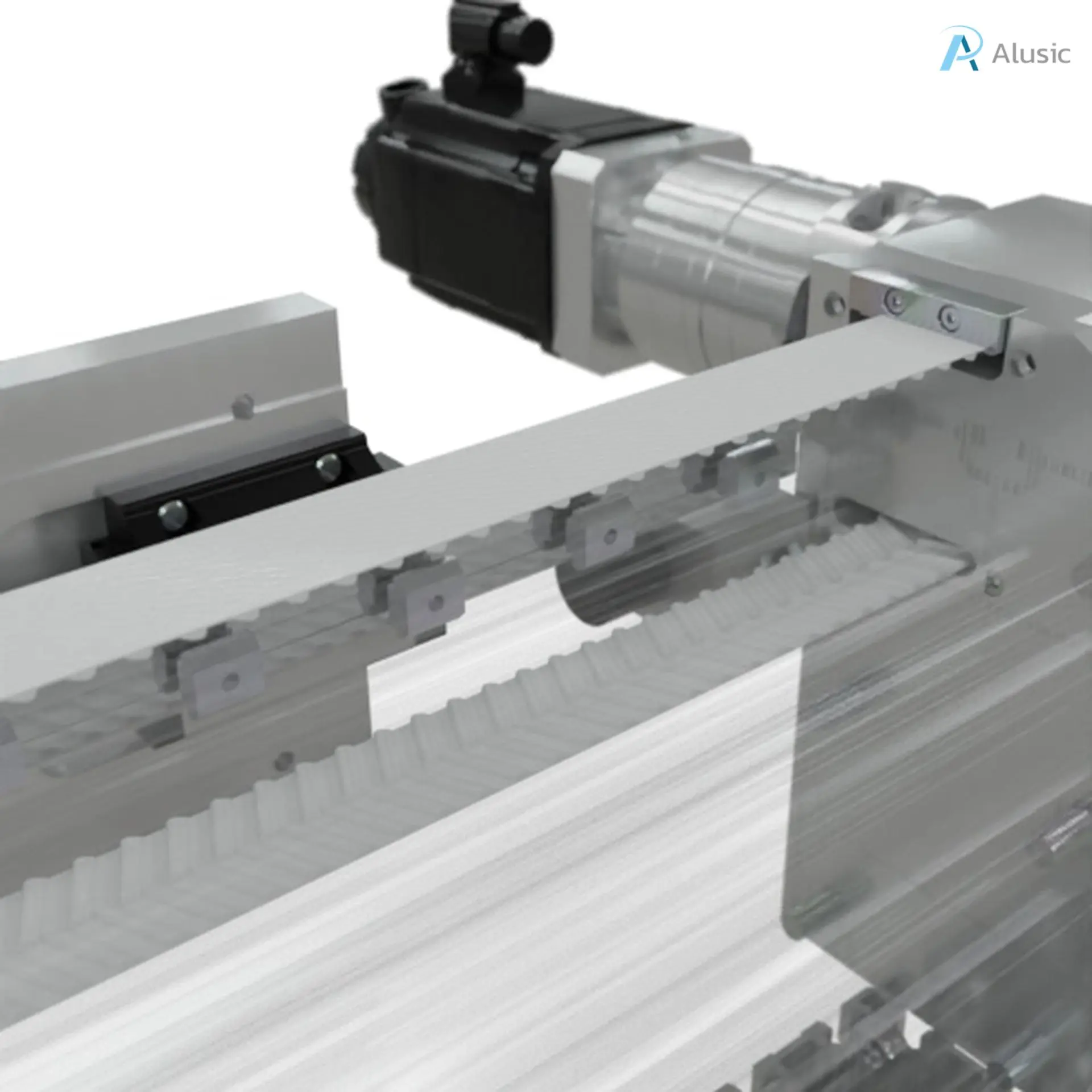

Belt-driven linear actuators offer high speed, smooth motion, and low noise.

Screw

Screw-driven actuators ensure high precision and force, making them ideal for heavy loads.

Gear rack

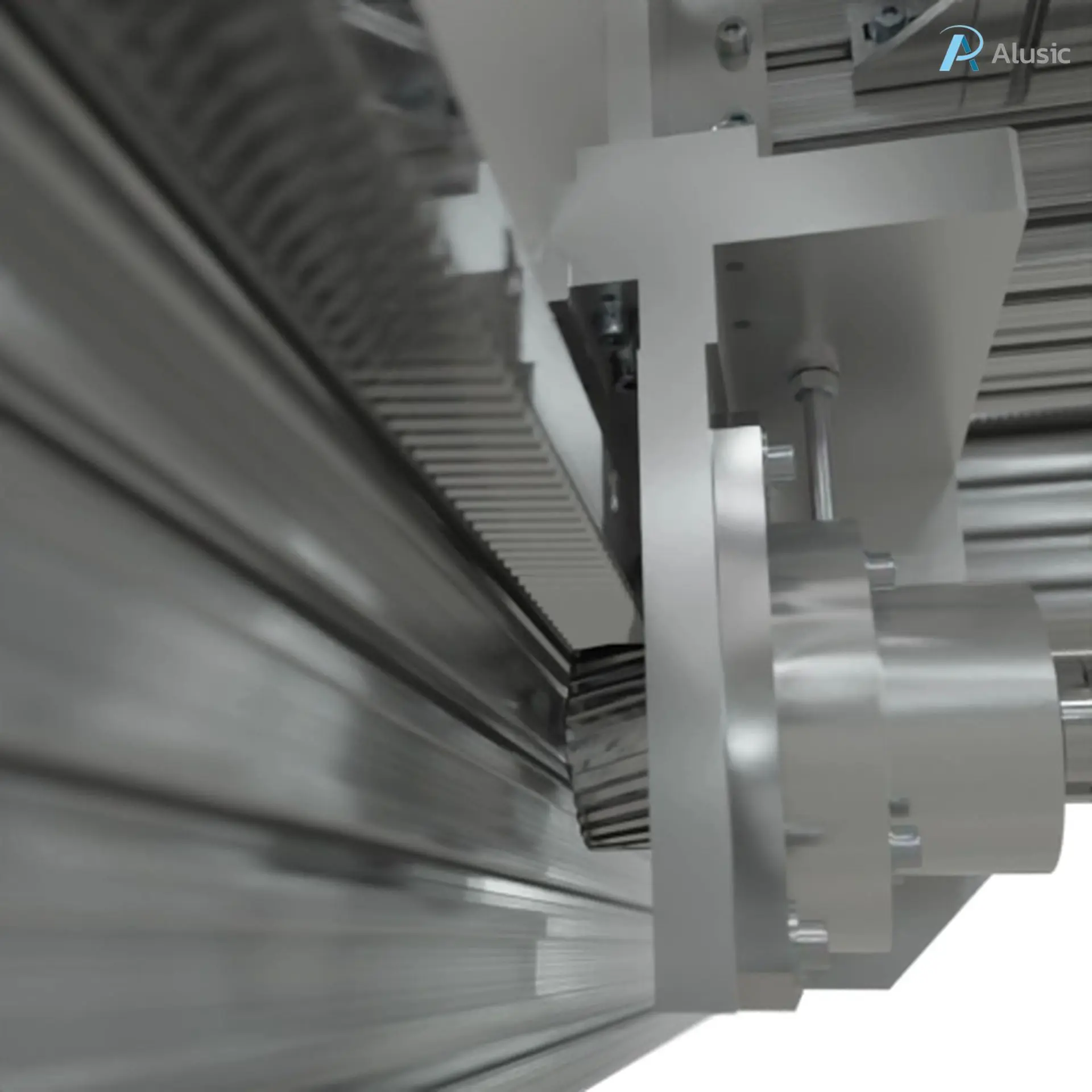

Rack and pinion actuators provide high rigidity, power, and accuracy.

Materials

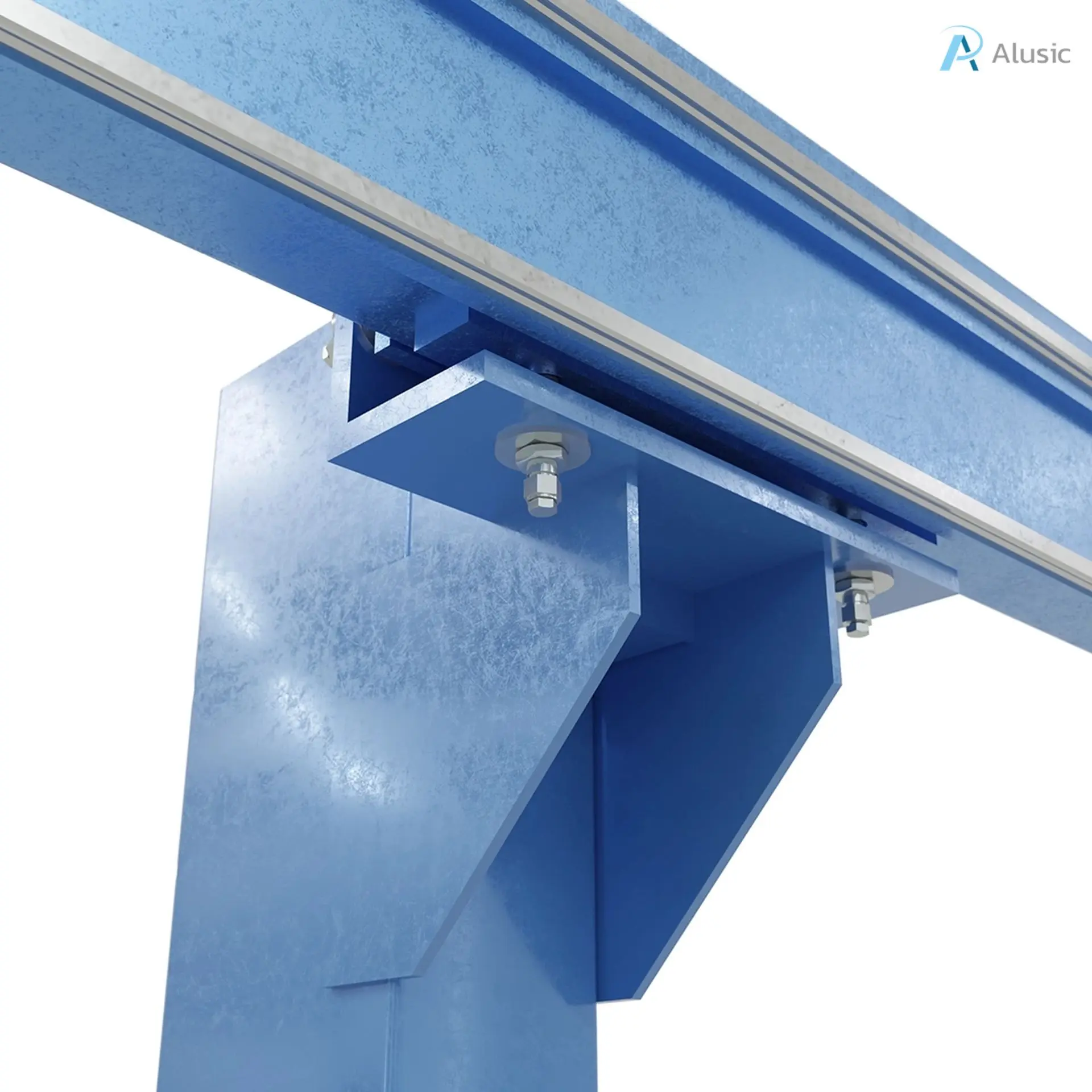

Iron

Used in custom and special applications for tailor-made structures.

Aluminium

Standard material for the profiles used in the construction of all actuators.

Carbon

Special profiles are used to ensure greater precision and robustness of the axis.

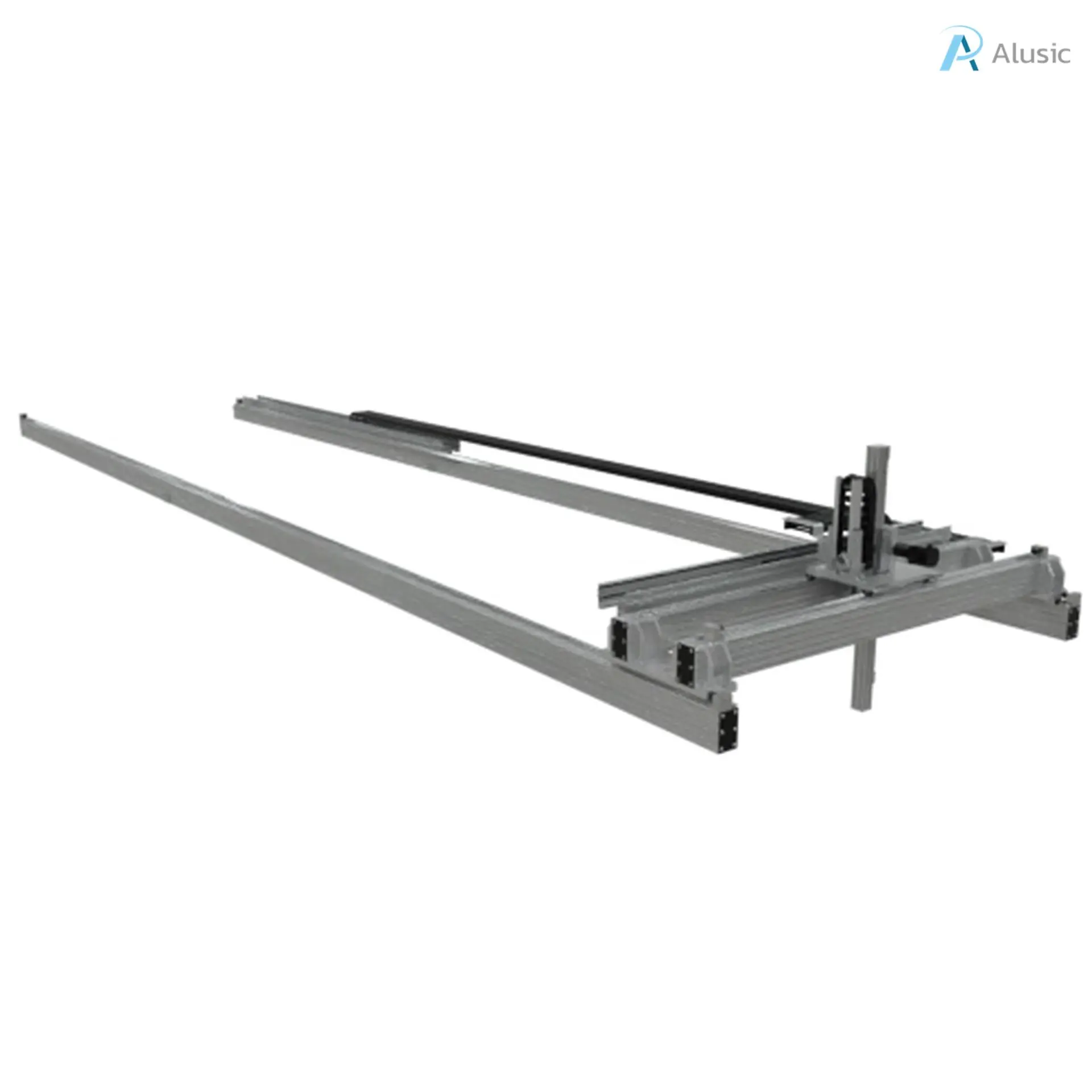

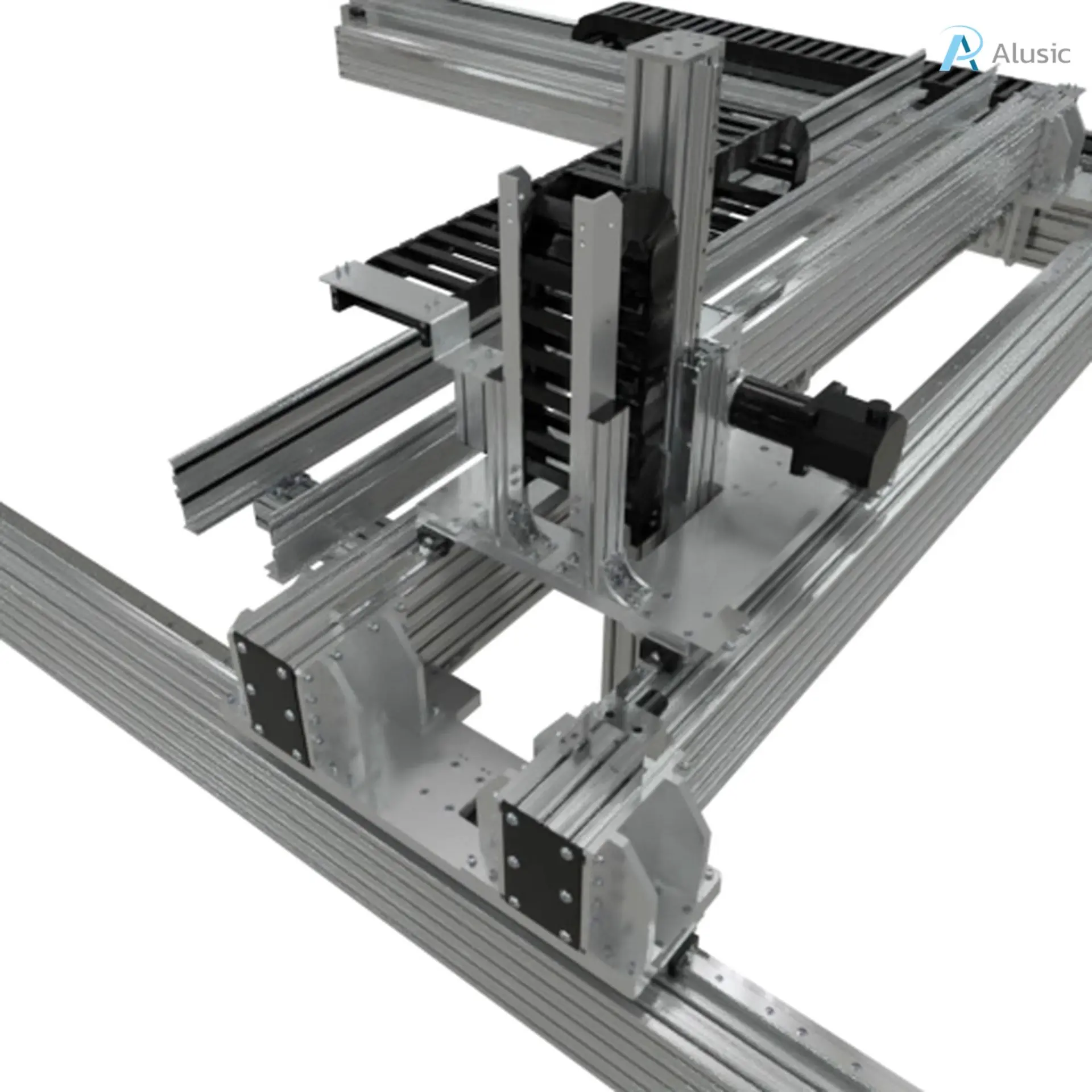

This structure incorporates three types of linear actuators, all made with the same profile as the structure:

-The X-axis is driven by a standard actuator.

-The Y-axis features a customized actuator with a modified number of sliding pads.

-The Z-axis is equipped with a special actuator with a telescopic arm, operated by a combination of an idler belt and a rack-and-pinion system.

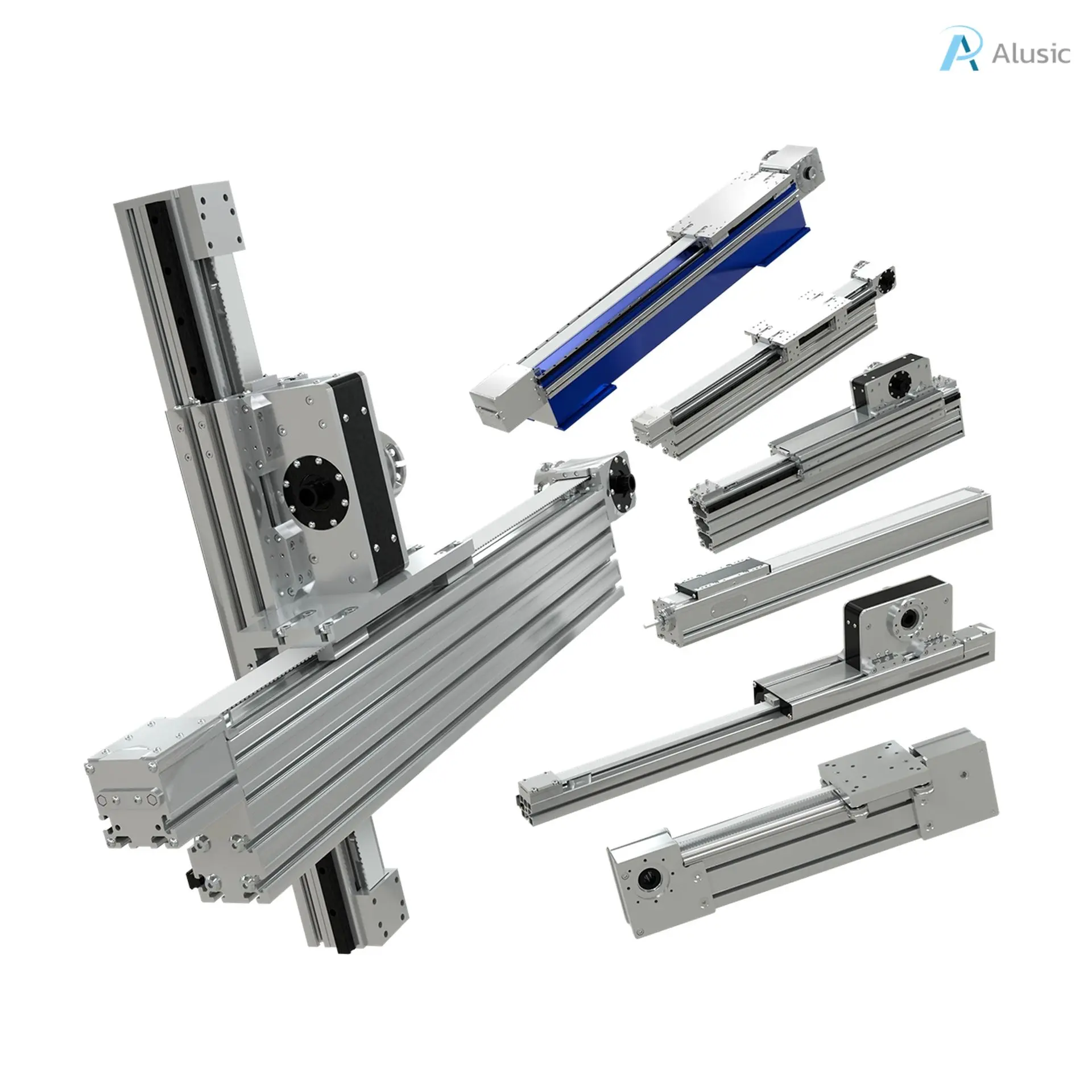

Standard

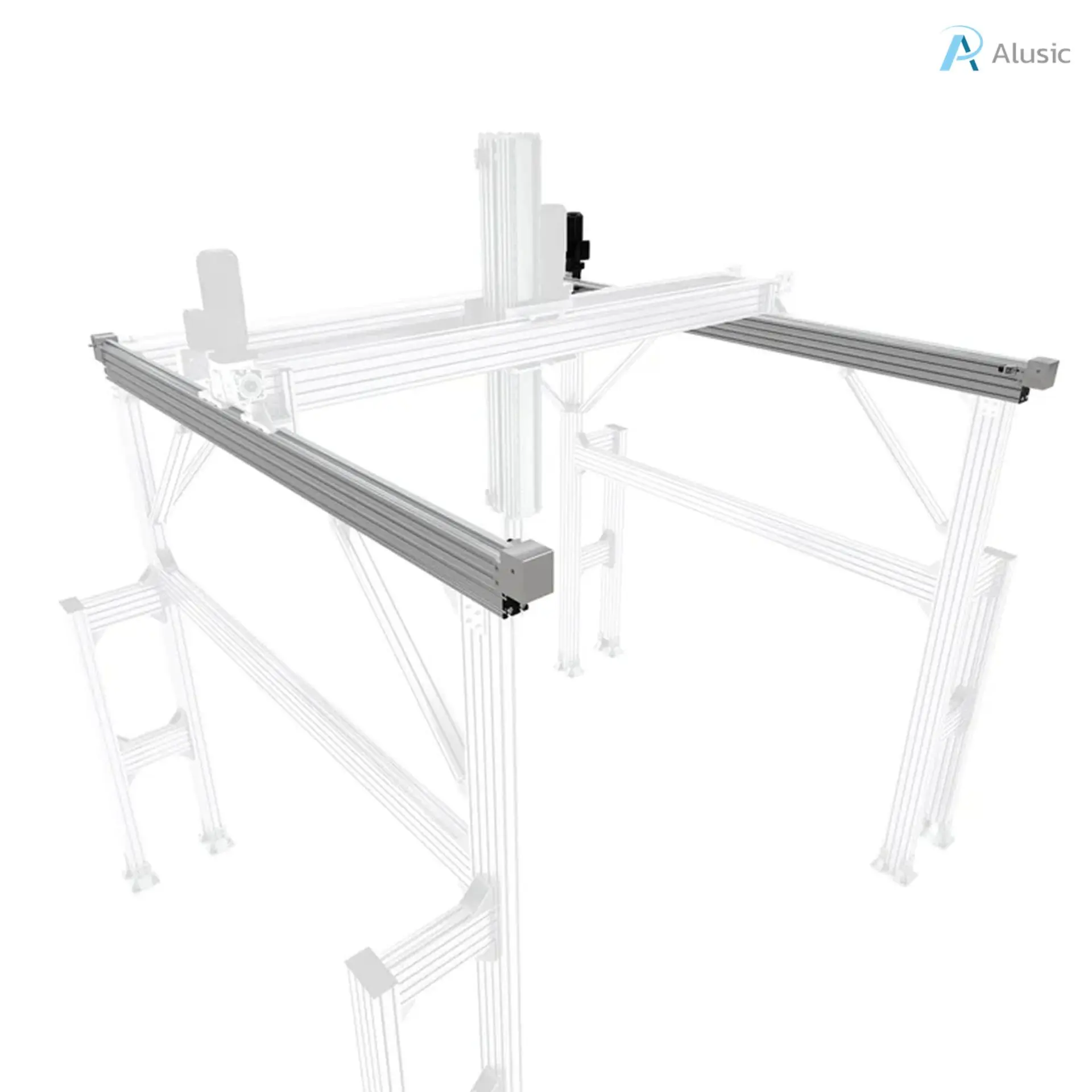

Alusic Standard linear axes

Alusic offers two different series of linear axes, each with its own characteristics

and adaptable according to the customer’s needs and requirements:

Heavy linear axes

Guides for heavy loads
Belts with double helical profile, 25 and 50
Operating temperatures between -40 and 95°C
Powerful and efficient

Light linear axes

Guides for light loads
T5 16mm and AT10 16 and 25mm belts
Operating temperatures between -20 and 80°C
Limited vibration and guaranteed quiet operation

The Alusic FC line

is constantly evolving!

The “Standard” section of the FC Line is constantly evolving, continuously expanding its product range and enriching the catalog with new actuators and accessories. Ongoing innovation and updates ensure increasingly versatile and high-performance solutions.

Buy Now

Custom

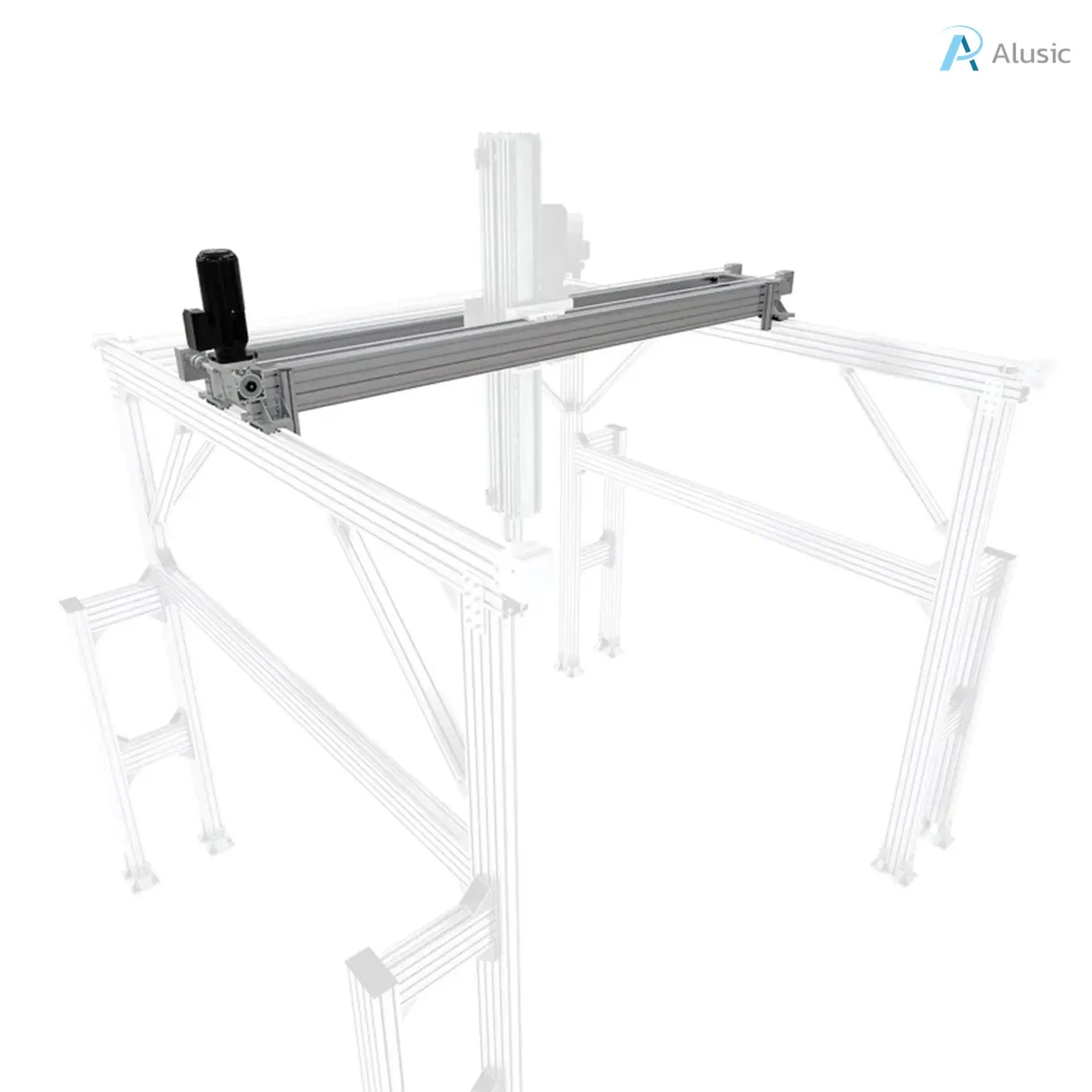

Alusic Custom linear axes

Alusic custom linear actuators originate from the standard FC line with slight modifications to meet specific needs. These customizations, such as doubling a carriage or using standard catalog components, optimize performance without requiring complex designs. A flexible, immediate, and cost-effective solution for targeted technical requirements.

Customization examples

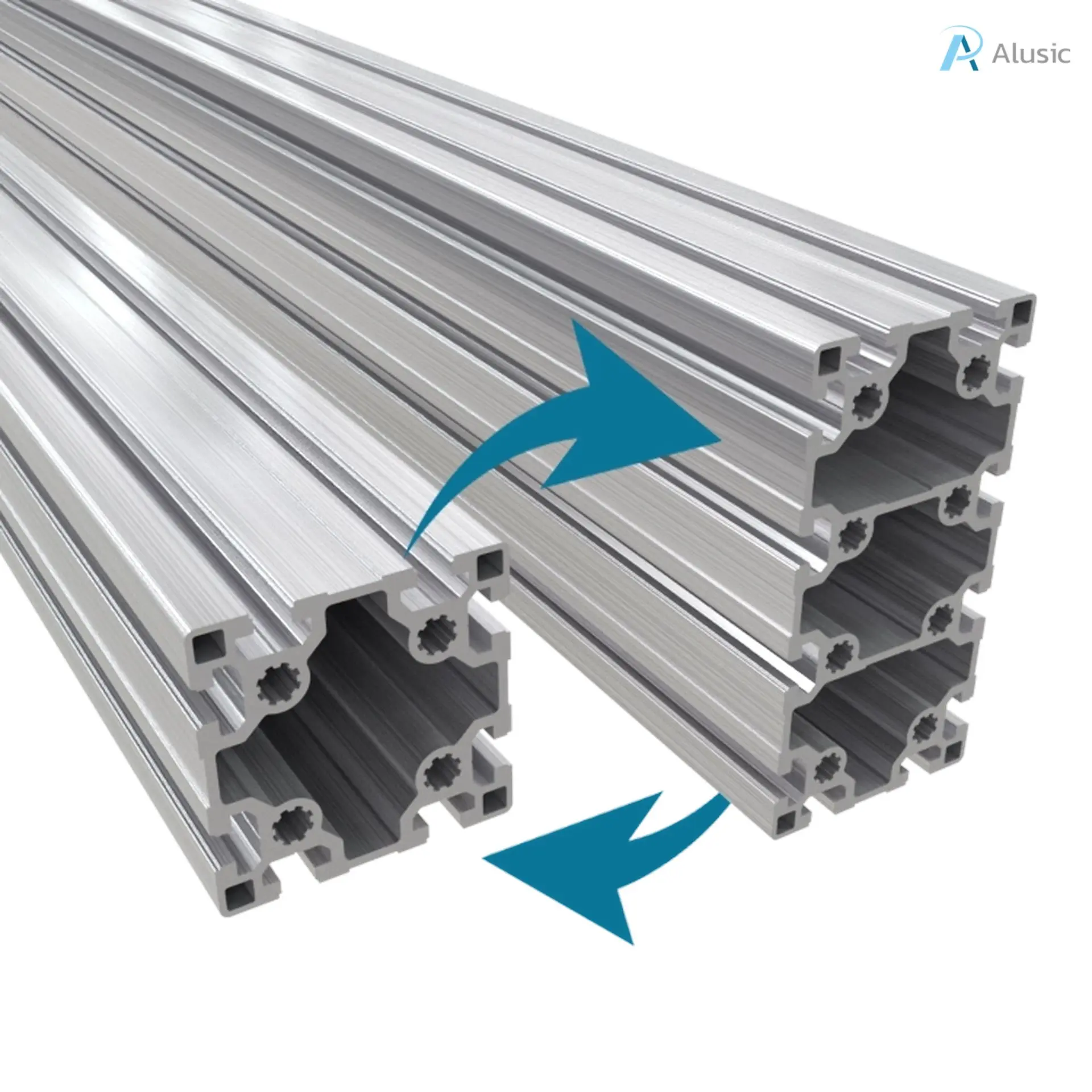

Replacement of the profile with one from the same line

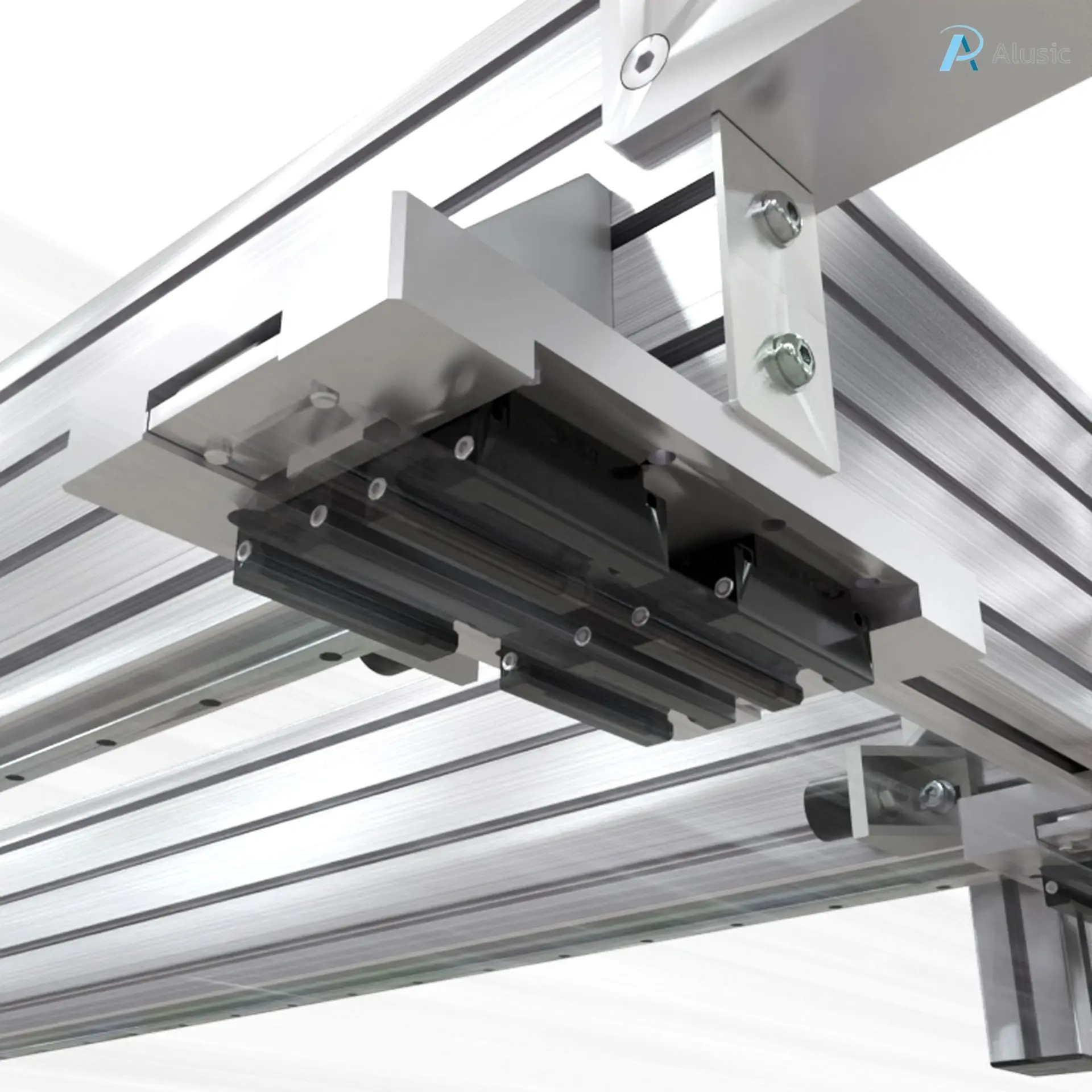

Modification of the number of guides and sliding pads.

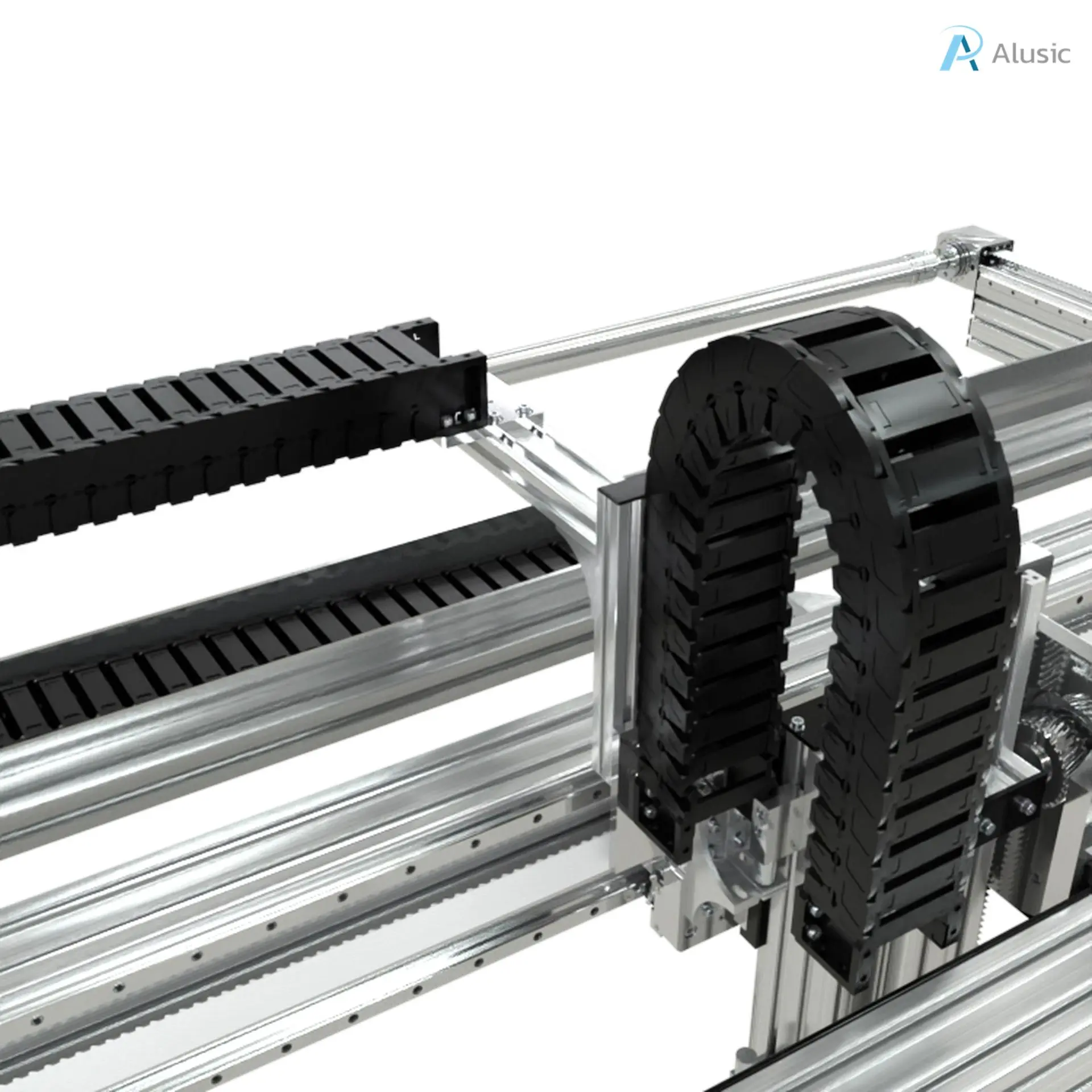

Implementation of cable chains, anti-fall brakes, pneumatic cylinders...

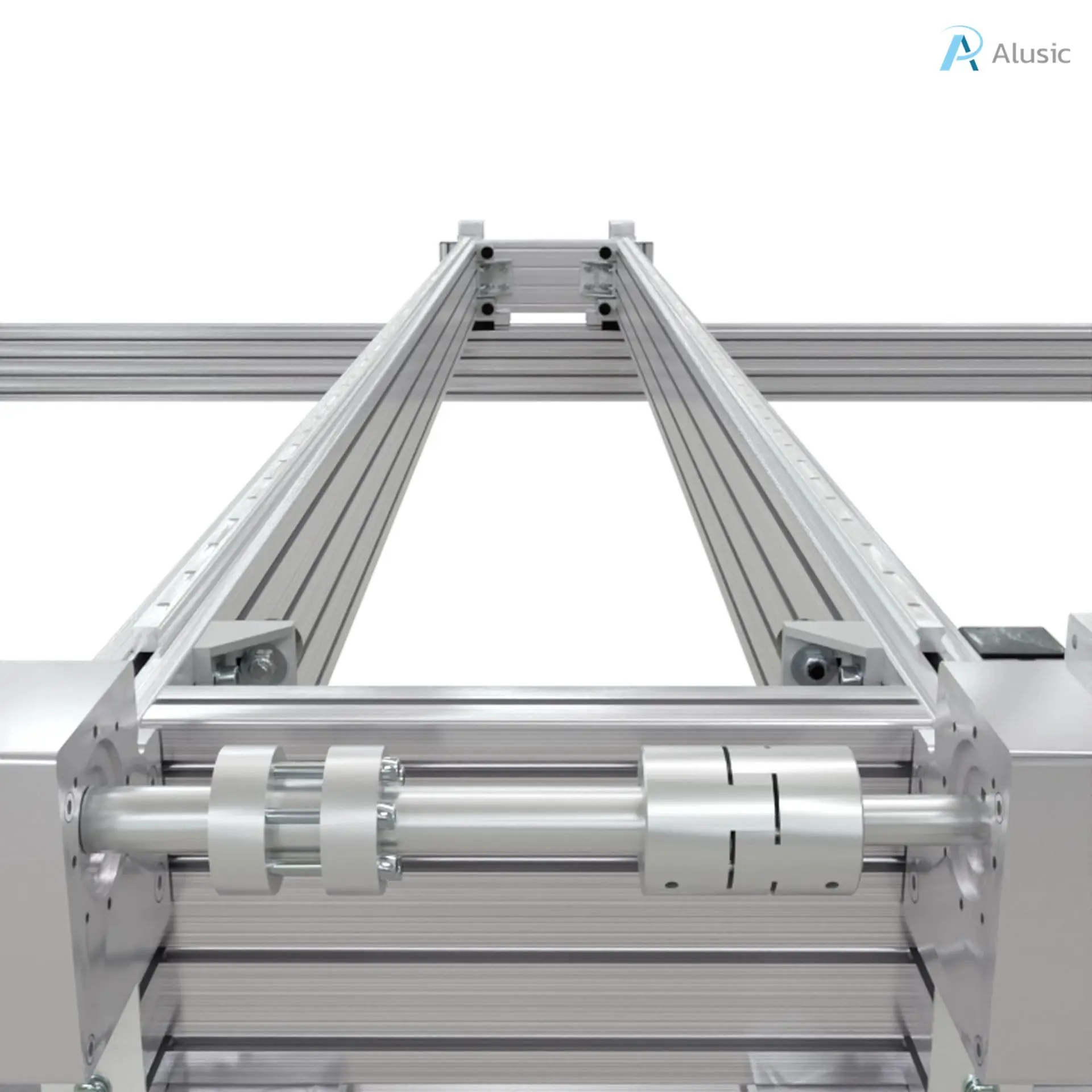

Parallel positioning of two units with a single motor and drive shaft

Special

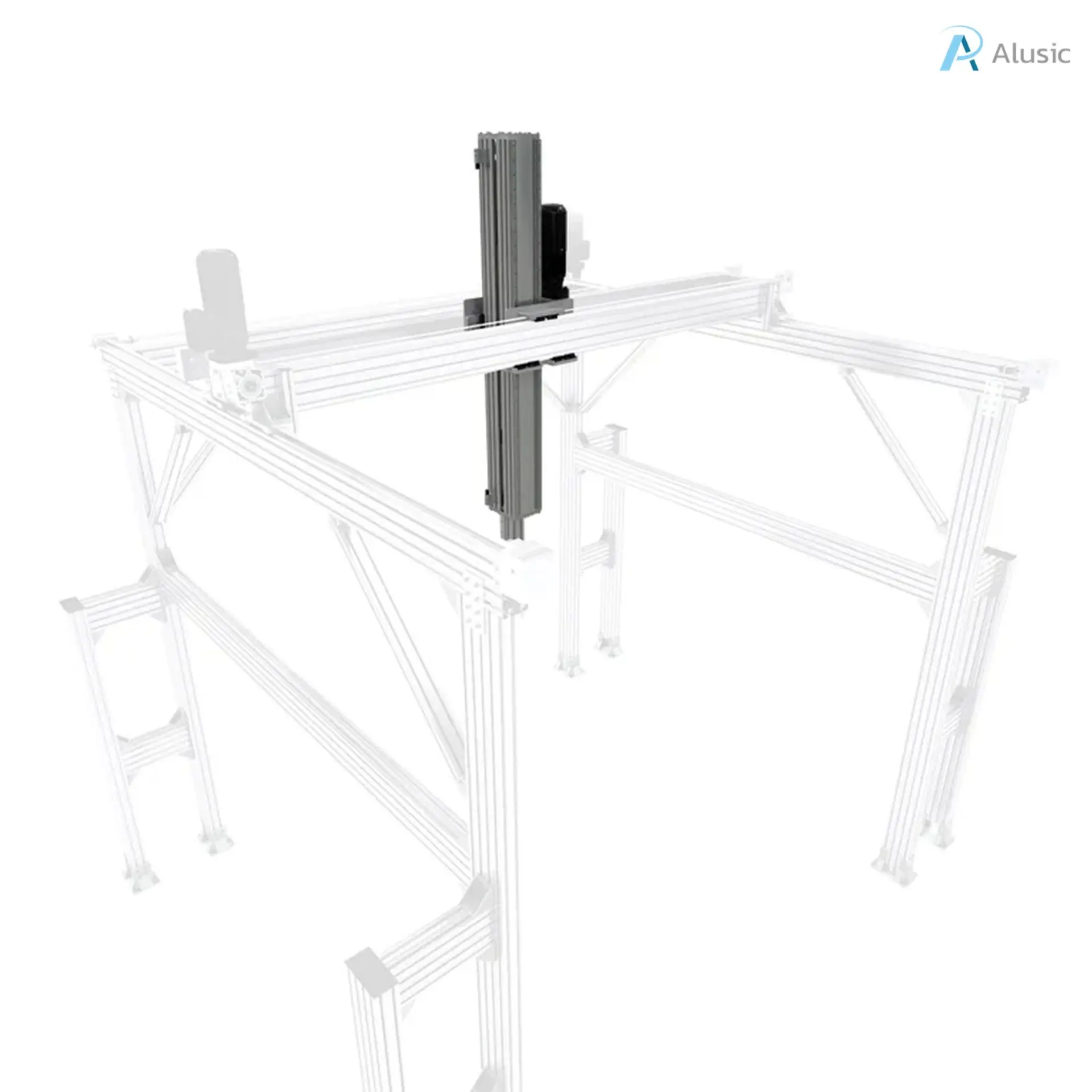

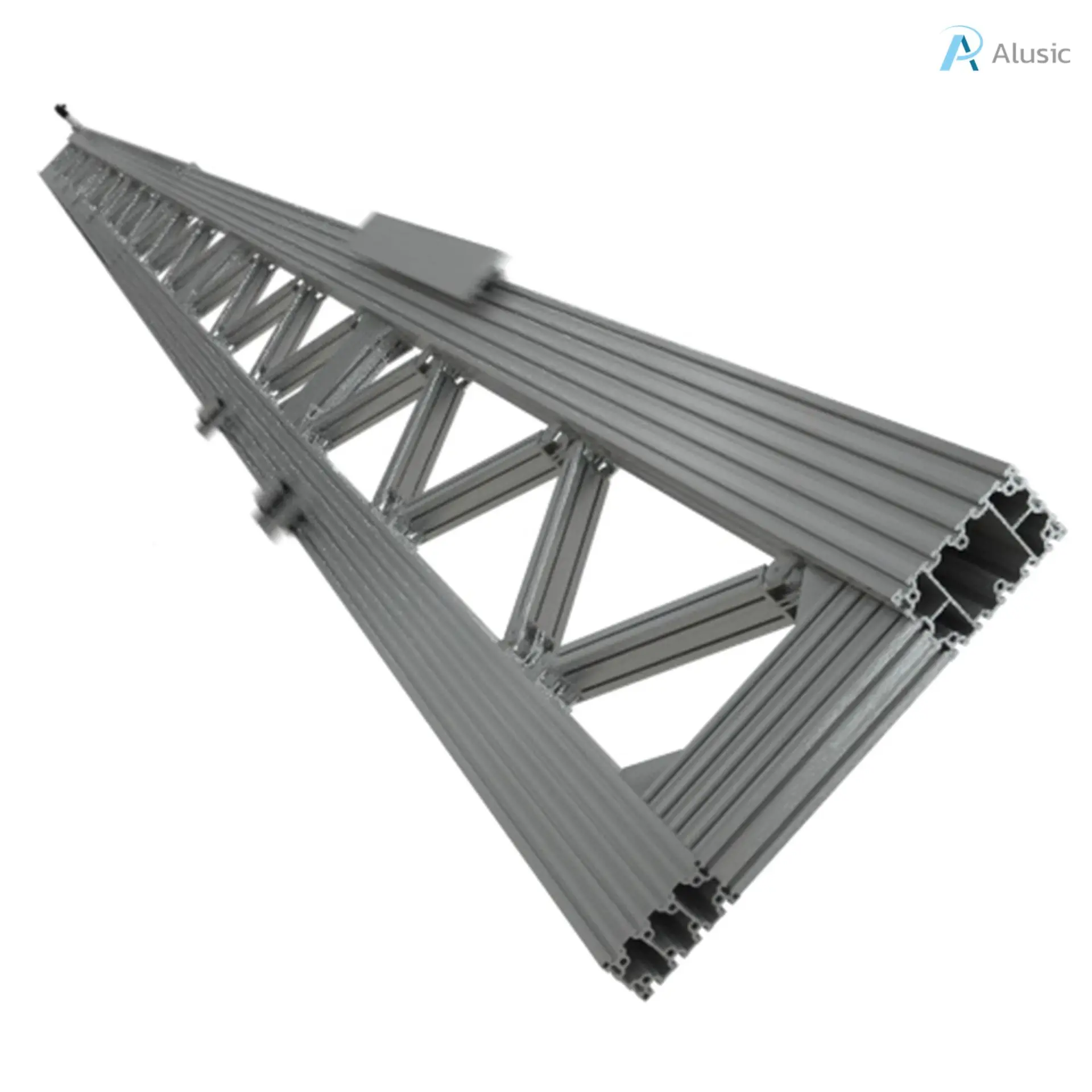

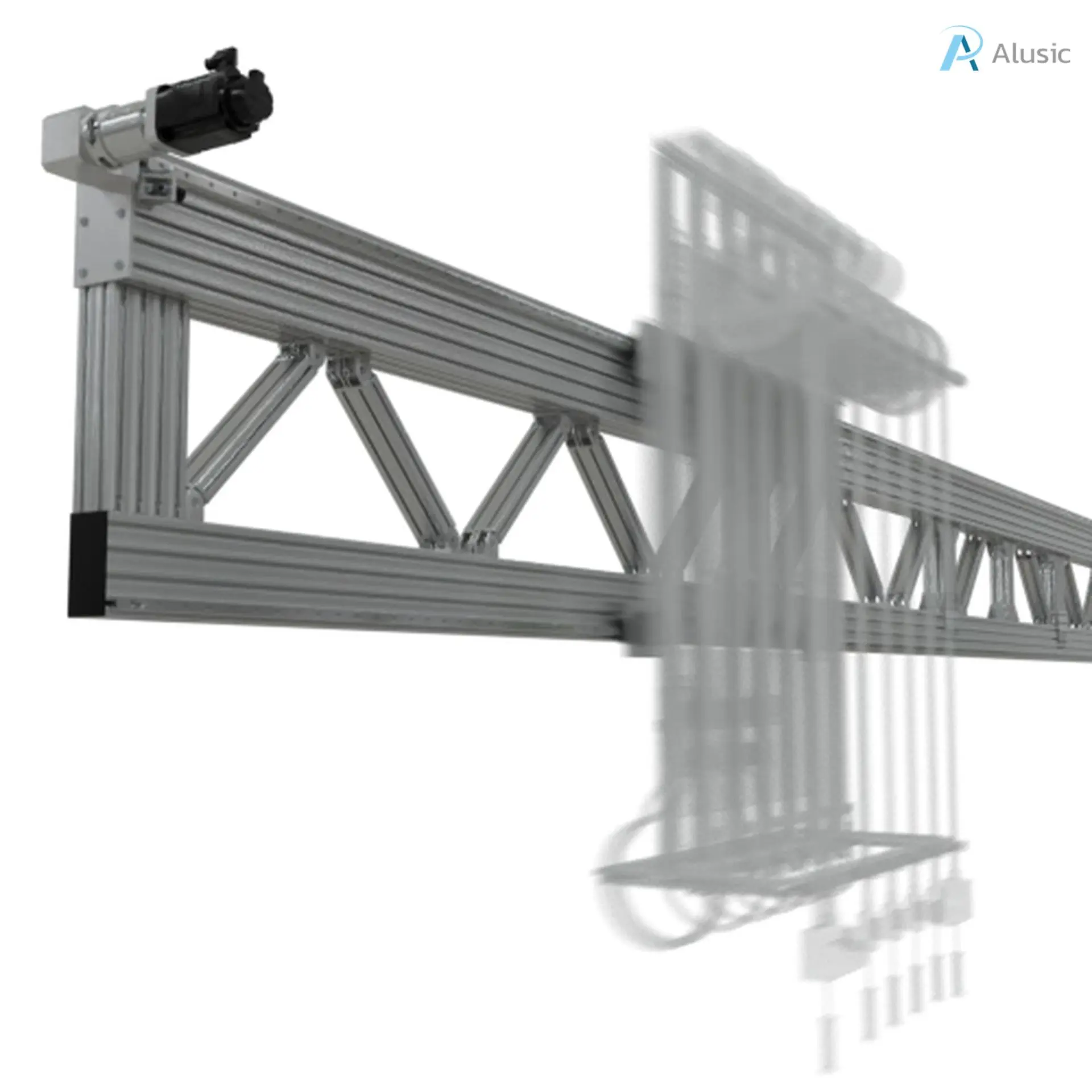

Alusic Special linear axes

The creation of special linear actuators is the flagship of the Alusic FC Line. Unlike custom models, which undergo only minor modifications, special actuators are completely redesigned by the technical department to meet the customer’s specific needs. These tailor-made solutions can include unique applications and the use of non-conventional materials, maximizing functionality and performance. The following pages showcase some special projects that demonstrate the potential of the FC Line.
