  3. Alusic Aluminium Profile, 13x30 mm
Pricelist: - Pricelist

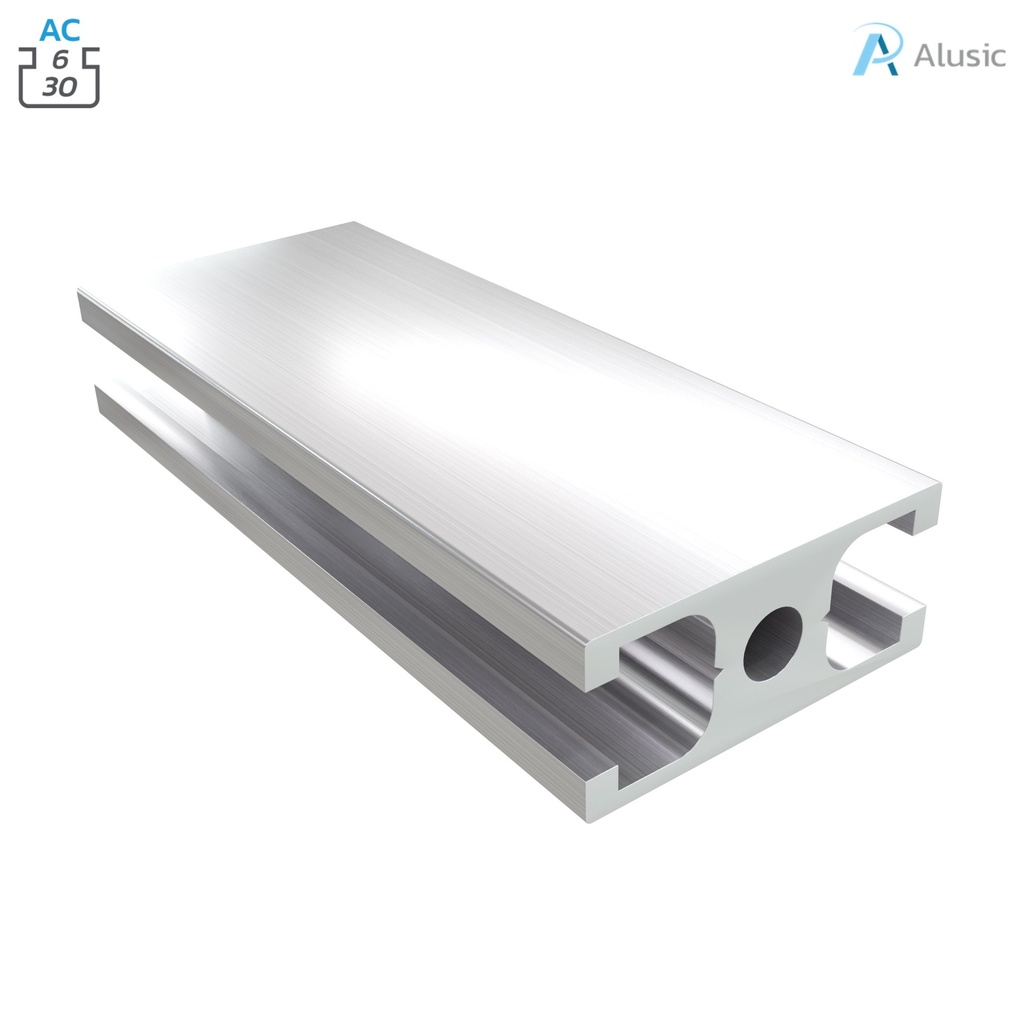

Alusic Aluminium Profile, 13x30 mm

Alusic Aluminium Profile, 13x30 mm

From Alusic | Product Code - 084.100.002

Series 30 aluminium profile section, 13x30 mm with 2 x 6 mm slots, aluminium bar, aluminium rod
₹ 0.00 ₹ 0.00 Tax Excluded

  • Profile Length

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Product parameters:

Series : AC Series 30 slot 6
Profile section : 13×30
Material : anodized aluminum
Color : natural
Profile length (mm) : 6,040
Moment of inertia lx (cm⁴) : 1.08
Moment of inertia ly (cm⁴) : 0.42
Sectional moment wx (cm³) : 0.72
Sectional moment wy (cm³) : 0.63
Cutting area (mm²) : 186
Weight (kg/m) : 0.5

Detailed product description

A small aluminum profile designed primarily for creating windows and doors in machine covers and production lines.

Made of aluminum alloy EN AW 6060 T5, anodizing layer more than 12 microns, tolerances according to EN 12020-2.

Possibility of delivery in large packages - small bundle of 5 bars, large bundle of 150 bars.

Joining profiles

The choice of fastening between different profiles is very important in any assembly structure. The customer has the opportunity to choose different solutions depending on the required implementation time or the nature of the load or load capacity.

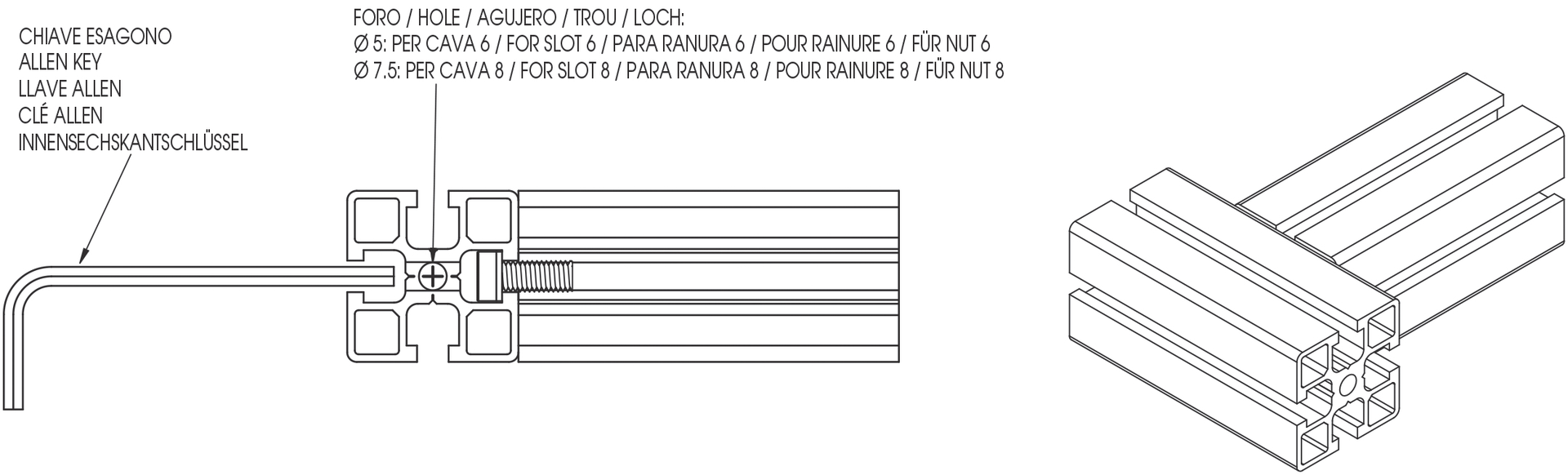

1. Fastening with screw in slot. Quick, simple installation.

This is the simplest and fastest way to install. This connection system guarantees good perpendicularity between the two surfaces (depending on the profile section) and good resistance of the connection in the transverse direction to the groove.

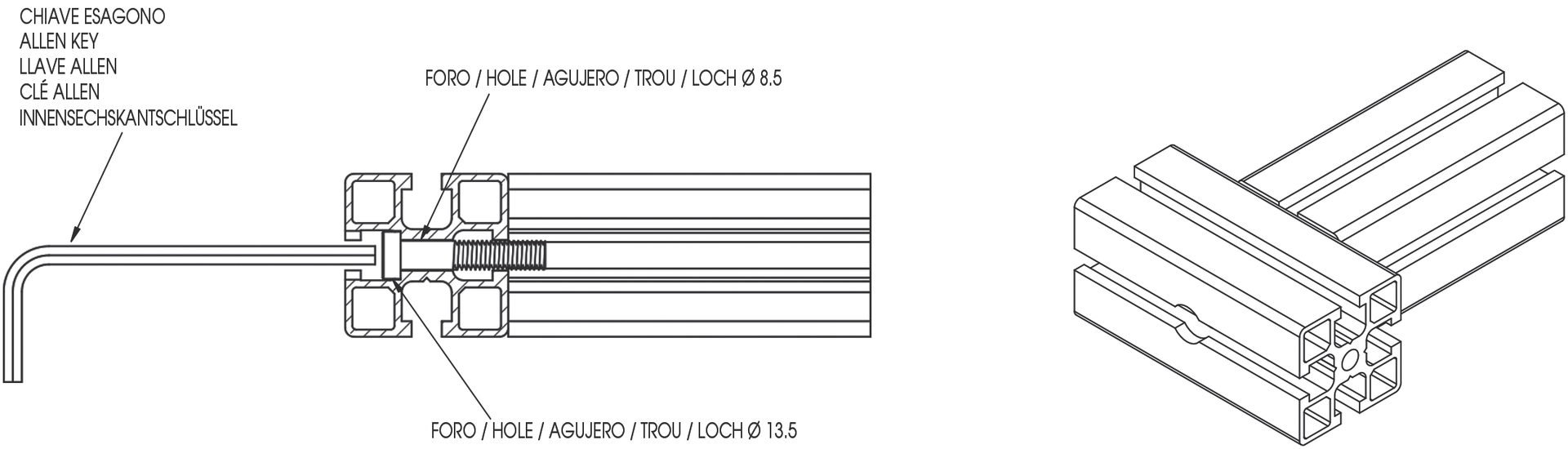

2. Fastening with through screw or counterbore.
​   Secure and simple, this solution ensures that parts will not slip if the screws come loose.

This is the strongest connection method resistant to mutual movement between two profiles. This connection method provides better perpendicularity of the connection (which, however, depends very much on the care of the quality of the cut). This system does not allow movement of the parts in case of loss of the screw. The hole can be drilled with a pistol drill with two diameters.

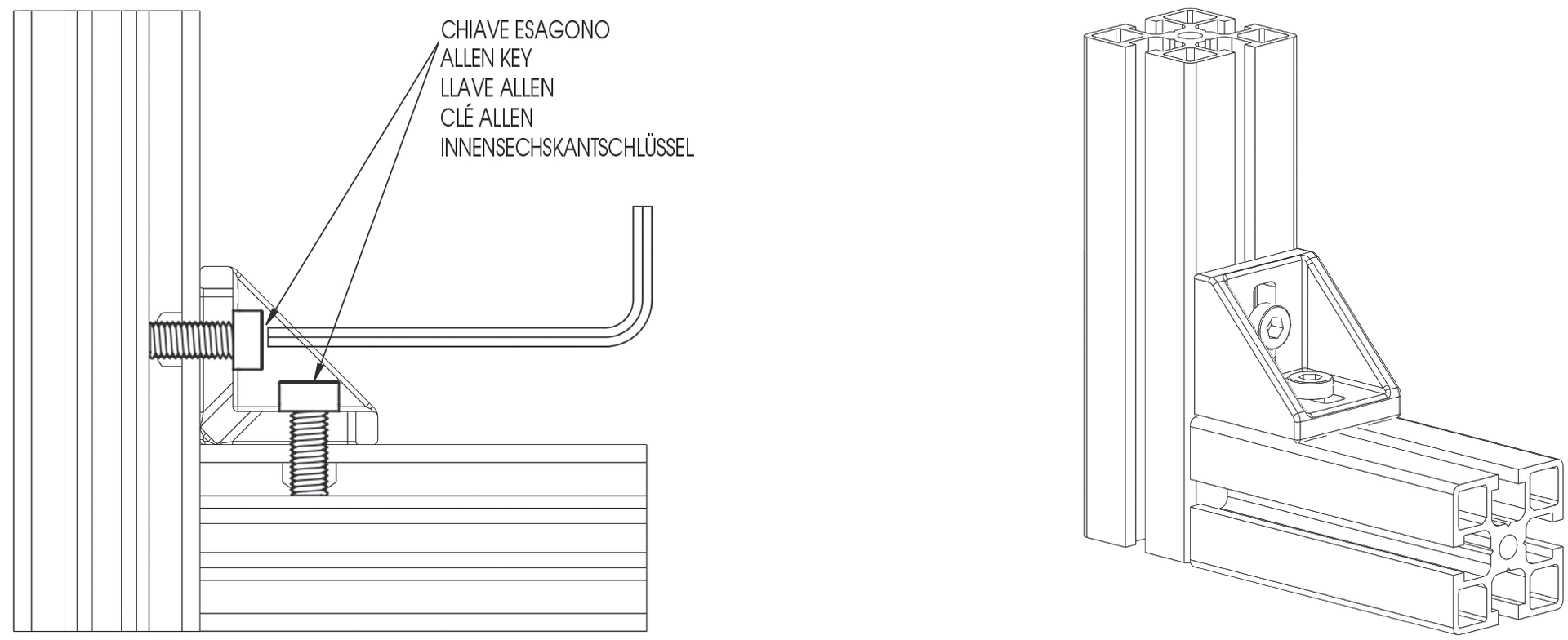

3. Fastening with angles or connectors. Wide possibility for adjustment and ease of installation.

This connection method is usually used where the greatest control options and ease of installation are required. Technical specifications for all products are in the product details of the given accessory.

THREADING OF PROFILES

When making the threads, we recommend that you follow the depths (L [mm]) given in the following table:

Profile SlotScrew diameterRecommended depth (mm)
6M615
8M825

The maximum screw tightening torque (C MAX) suggested for the assembly of Alusic components (unless otherwise specified or particular

applications to be assessed on a case-by-case basis) is as follows:

Profile SlotScrew diameterMax. recommended tightening torque (Nm)
6M610
8M820


CHEMICAL COMPOSITION OF ALLOYS

EN-AW

Cu

Fe

Mn

Mg

Si

Zn

Cr

Ti

Al

6060

0.1

0.1 - 0.3

0.1

0.35 - 0.6

0.3 - 0.6

0.15

0.05

0.1

dal 98% al 99%

6063

0.1

0.35

0.1

0.45 - 0.9

0.2 - 0.6

0.1

0.1

0.1

dal 97,5% al 98,5%


MECHANICAL PROPERTIES

EN-AW Rm(N/mm²) Rp0,2(N/mm²) A(%) HB
6060 190 150 8 70
6063 215 170 8 75


PHYSICAL PROPERTIES ​

E [N/mm²] 69000
ρ [Ω mm/m] 0,033
λ W/mK 210
Tm (C°) 615 - 655
α (K¯¹) 25X10-6

Technical sheet - 084.100.001
