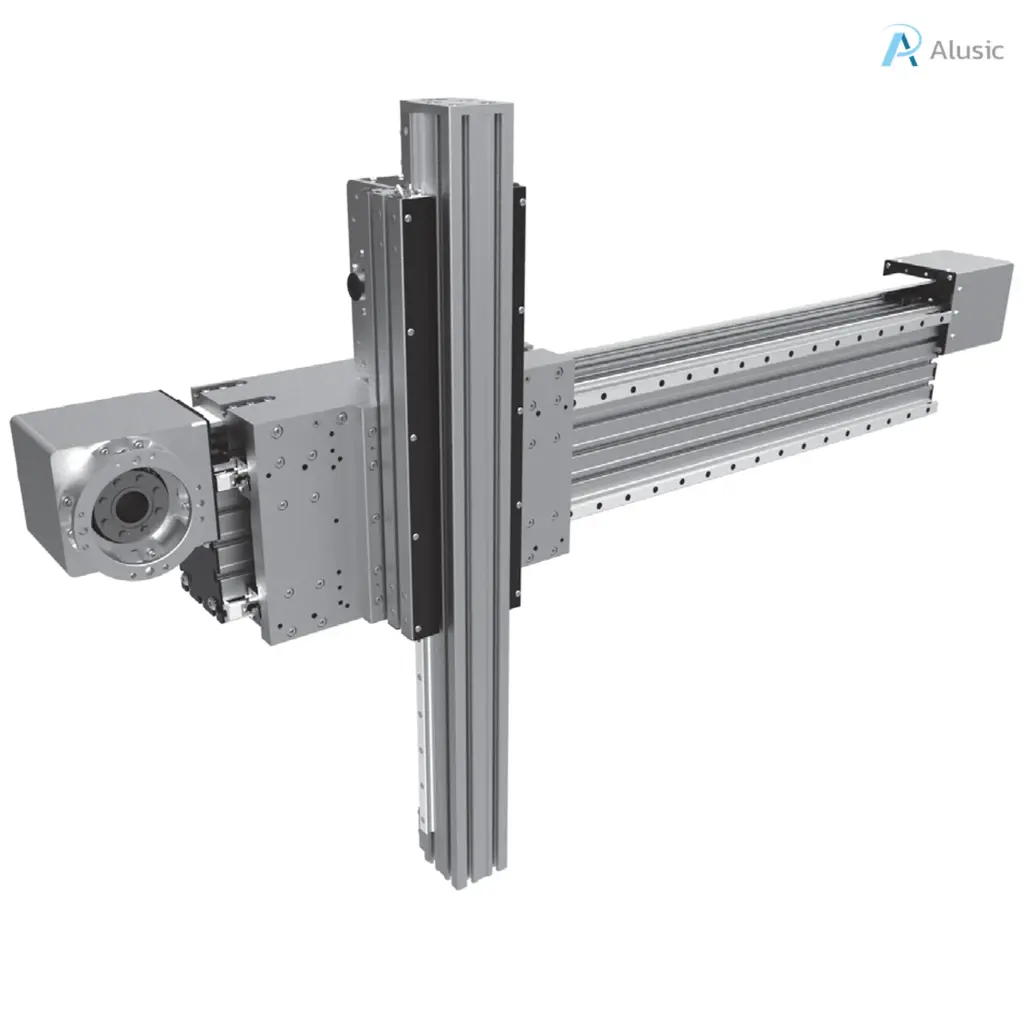

Alusic self-aligning linear actuators 828.HHL.L/829.HHL.L, ball bearing guides size 25 (x) and 20 (z), 135x225 and 90x180 profiles

From Alusic | Product code - 828.HHL.L./829.HHL.L

828.HHL.L/829.HHL.L are self-aligning belt-driven linear actuators sliding on recirculating ball bearing guides. The slides are size 25 (x) and 20 (z). The axis have 135x225 and 90x180 10 mm slot profiles.
₹ 0.00 ₹ 0.00 Tax Excluded

This combination does not exist.

Terms and Conditions
Shipping: 4-5 Weeks


CHEMICAL COMPOSITION OF ALLOYS

EN-AW 6060 6063
Cu 0.1 0.1
Fe 0.1 - 0.3 0.35
Mn 0.1 0.1
Mg 0.35 - 0.6 0.45 - 0.9
Si 0.3 - 0.6 0.2 - 0.6
Zn 0.15 0.1
Cr 0.05 0.1
Ti 0.1 0.1
Al dal 98% al 99% dal 97,5% al 98,5%


MECHANICAL PROPERTIES

EN-AW Rm(N/mm²) Rp0,2(N/mm²) A(%) HB
6060 190 150 8 70
6063 215 170 8 75


PHYSICAL PROPERTIES ​

E [N/mm²] 69000
ρ [Ω mm/m] 0,033
λ W/mK 210
Tm (C°) 615 - 655
α (K¯¹) 25X10-6

Technical sheet -
